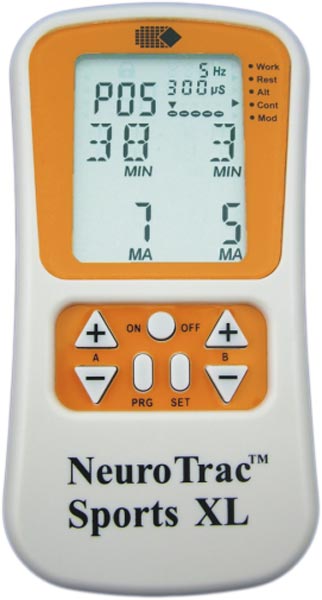

Neurotrac Sports XL muscle rehabilitation advanced muscle stim

Neurotrac Sports XL performs a variety of functions, including muscle building, toning, rehabilitation and cellulite reduction. There are 21 pre-set programmes for sports, rehabilitation and fitness on the Neurotrac XL unit. Neurotrac Sports XL also feature 3 programmes reserved for personal customisation.
Neuromuscular stimulation is a low volt electrical stimulation of motor nerves using a device such as Neurotrac Sports XL. Gentle electrical stimulation causes muscle fibres to contract. Repeated contraction and relaxation of muscles has been found effective in a treatment of many musculoskeletal disorders and vascular conditions. Neuromuscular stimulation is routinely used in muscle rehabilitation after injuries or after stroke.

NeuroTrac Sports XL is an advanced and modern digital dual channel STIM unit with support for 4 lead wires. It features 21 built in sports and muscle rehabilitation programmes and 3 custom programmes.
NeuroTrac Sports XL is a professional unit that has a wide variety of functions including muscle building, toning, rehabilitation and cellulite reduction. 5 segment programmes can be customised to meet the needs of the most demanding user.
Neurotrac Sports XL enables you to energise, revitalise and train!

Neurotrac Sports XL summary overview

Dual channel Sports XL device has all the features of Sports device, plus the following:

• Stronger symmetrical stimulation, with the reduced Pulse Width: 50 - 330 μS
• 2 lead wires for each channel giving a total of 8 electrode positions
• 21 Pre-set Sports's programmes and 3 Customisable programmes
• Advanced multi-phase programmes where treatment is split into time phases with different stimulation parameters

Neurotrac Sports XL performs a variety of functions, including muscle building, toning, rehabilitation and cellulite reduction. There are 21 pre-set programmes for sports, rehabilitation and fitness on the Neurotrac XL unit. Neurotrac Sports XL also feature 3 programmes reserved for personal customisation.
Neuromuscular stimulation is a low volt electrical stimulation of motor nerves using a device such as Neurotrac Sports XL. Gentle electrical stimulation causes muscle fibres to contract. Repeated contraction and relaxation of muscles has been found effective in a treatment of many musculoskeletal disorders and vascular conditions. Neuromuscular stimulation is routinely used in muscle rehabilitation after injuries or after stroke.

NeuroTrac™ Sports XL Operation Manual

PDF]

NeuroTrac™ Sports XL

NeuroTrac Sports XL offers precision and full control of the following:

- Pulse Width 50?S - 450?S
- Pulse Rates from 2 - 100 Hz
- Ramp up times
- Work/Rest cycles
- Alternating and/or Synchronous Applications, when both channels are applied
- 21 Preset Sports Stimulation Programmes
- 3 Customisable Programmes for user set-up
- Dual Channel
- Lock mode function for measuring home compliance of stimulation time in use and the average current used
- Automatic switch off when not in use
- Compact, light and user friendly

Healthcare applications of NeuroTrac Sports XL:

• Increasing muscle strength
• Improving range of movements
• Increasing and improving blood supply to the muscles
• Neurotrac Sports XL can be used in place of warm up exercises prior to main exercise sessions
• Neurotrac Sports XL can help to prevent disuse atrophy due to diseases, such as rheumatoid arthritis or during prolonged periods of immobility, such after accidents or sports injuries
• Neurotrac Sports XL can help people with disabilities, muscle wasting conditions and mobility problems as the neuromuscular stimulation keeps the unused muscle bulk healthy by exercising (twitching) dormant muscles and increasing blood flow to muscle fibres
• Neurotrac Sports XL delivers quality neuromuscular stimulation, various types of muscle conditioning and pain relief

Neurotrac Sports XL programmes

• Warm up
• Capillary
• Endurance
• Resistance force output 1
• Resistance force output 2
• Resistance force output 3
• Maximum force output
• Explosive force output
• Lipolysis Anti Cellulite
• Muscle at Rest
• Mass Muscle Contraction
• Active Recovery
• Muscle Toning
• Calming the Muscle
• Pain Relief
• Cellulite
• Explosive Strength Level 1
• Explosive Strength Level 2
• Explosive Strength Level 3
• Explosive Strength Level 4

Neurotrac Sports XL specifications

1.    Dual channel: individually isolated circuits.
2.    Amplitude: 0-90 mA into 500 Ohm load; indication only. Actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 86 mA, at 1500 Ohms load the maximum will be limited to 65 mA.
3.    Type: Constant Current, maximum output voltage 180 Volts +10 / -30 Volts
4.    Waveform: Symmetrical, rectangular bi-phasic with zero DC current.
5.    Selectable pulse width: 50 μS - 450 μS [2% accuracy].
6.    Pulse Rate selection: in the continuous mode 2 - 100 Hz [2% accuracy].
7.    Time duration of the treatment selectable: 1 minute to 90 minutes.
8.    Low Battery Indicator: If the battery goes below 6.9 volts +/- 0.2 volts the battery symbol will flash on/off once every second.
9.    Open Electrode Detect: If an open circuit is detected at the output of channel A or B the output current will be reset at zero.
10.    Ramp up time 0.1 - 9.9 seconds.
11.    If the battery voltage is below 6.6 (+/- 0.2) volts the unit will not turn on.
12.    Physical dimensions: 134 x 69 x 29.7 mm.
13.    Weight: 0.18 KG with battery.
14.    Environmental Conditions for use:  +10 to +30 degrees Centigrade. 0-90% Humidity.
15.    Environmental conditions for storage & transport:  -10 to +50 degrees Centigrade. 0-90% Humidity.

Neurotrac Sports XL kit

NeuroTrac4 Sports XL dual channel unit is supplied in a neat carry case with a battery, connecting leads and 2 sets of re-usable skin electrodes (50 x 50 mm).
Detailed user instructions are enclosed.
